캐릭터 총기 회전 & 총기 애니메이션 - 1

각종 setup



• https://www.pixilart.com/draw# 를 이용하여 톤앤 매너 맞추기
  • 사용중인 스프라이트 반전기능 & 스프라이트 필터

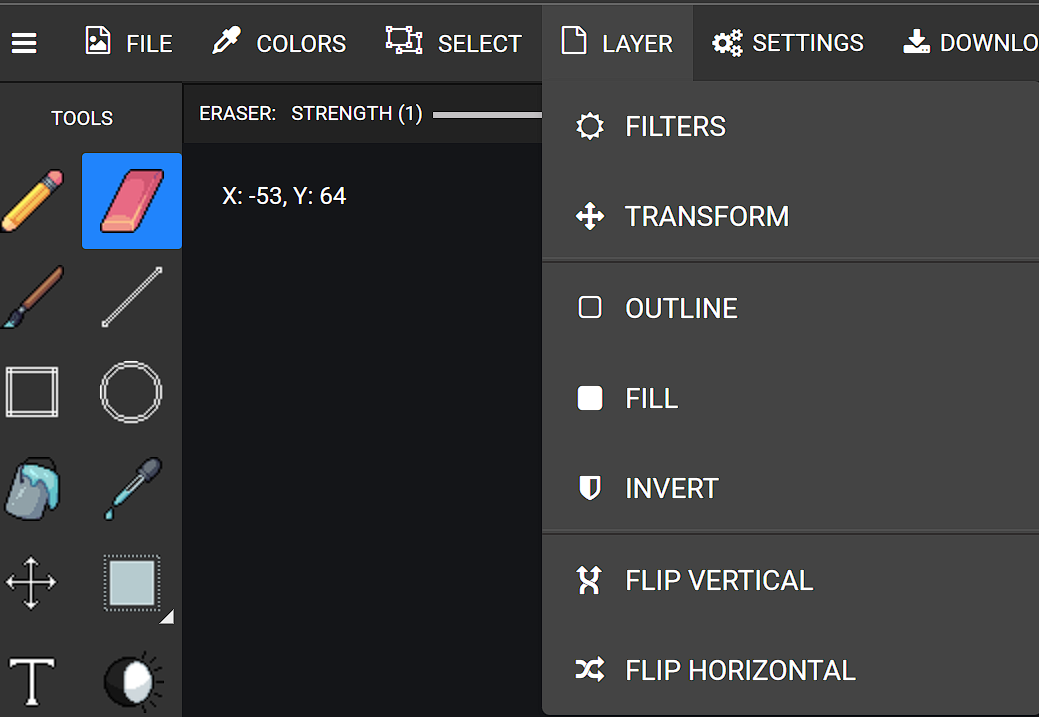

좌측상단 메뉴 LAYER 하위 항목  FLIP VERTICAL 이용하여 반전

우측 LAYER -> LAYER FILTER 에서 필터 설정 가능

• 부분 저장기능

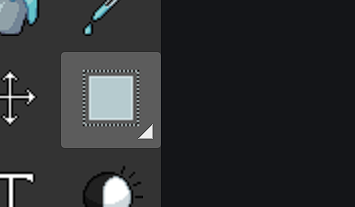

좌측 select tool 선택

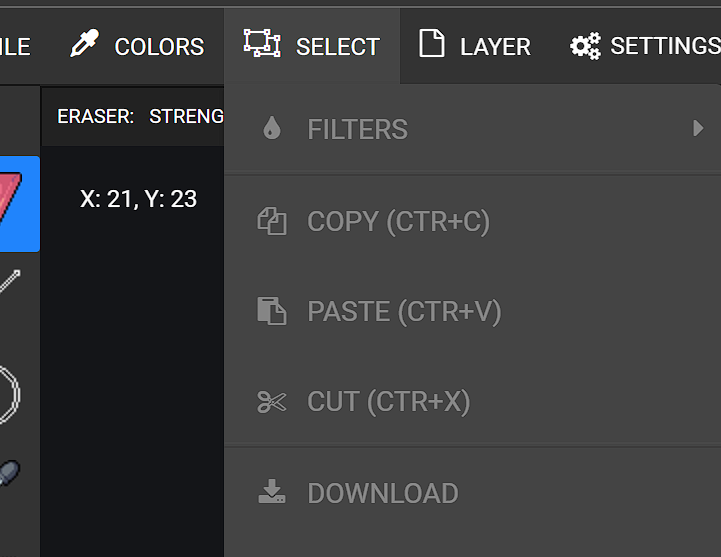

좌측 상단 Select 메뉴 하위 항목 DOWNLOAD 선택

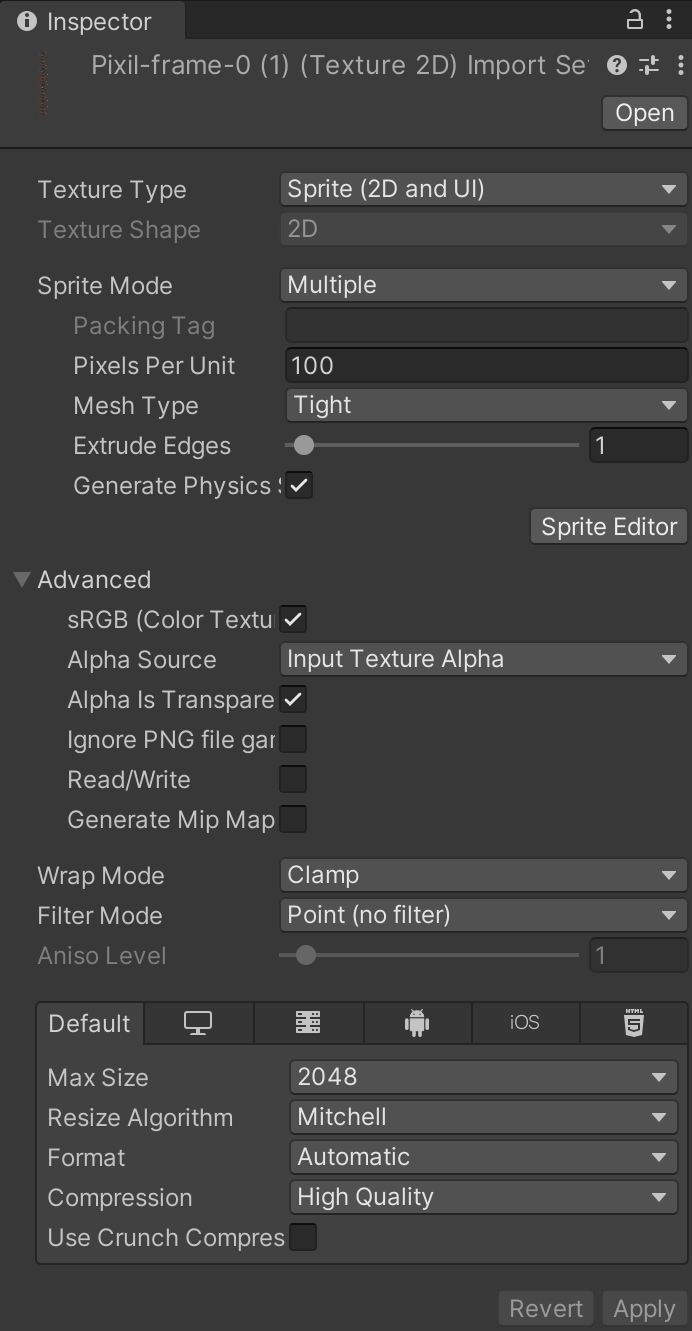

• 유니티 스프라이트 옵션

우측 아날로그 터치패드

using Unity.Mathematics;
using UnityEngine;
using UnityEngine.EventSystems;
using UnityEngine.UI;

public class SpcialWeapon : MonoBehaviour, IBeginDragHandler, IEndDragHandler, IDragHandler
{
    public GameObject gun;
    public Animator playeranimi;
    public GameObject[] hands;

    public RectTransform lever;
    private RectTransform rectTransform;

    [SerializeField, Range(10f, 150f)]
    private float leverRange;

    private Vector2 inputVector;

    public void Start()
    {
        this.rectTransform = GetComponent<RectTransform>();

    }

    public void OnBeginDrag(PointerEventData eventData)
    {
        this.ControlJoystickLever(eventData);
    }

    public void OnDrag(PointerEventData eventData)
    {
        this.ControlJoystickLever(eventData);
    }

    public void OnEndDrag(PointerEventData eventData)
    {
        this.lever.anchoredPosition = Vector2.zero;
    }


    public void ControlJoystickLever(PointerEventData eventData)
    {
        Vector2 inputDir = eventData.position - rectTransform.anchoredPosition;
        Vector2 clampedDir = inputDir.magnitude < leverRange ? inputDir
            : inputDir.normalized * leverRange;
        this.lever.anchoredPosition = clampedDir;
        this.inputVector = clampedDir;
    }

    public void GunRotate(Vector2 dir)
    {
        this.gun.transform.right = dir;
    }

    void Update()
    {
        if (Input.GetMouseButton(0))
        {
            this.GunRotate(inputVector);
        }

        Debug.Log(this.inputVector);
        if (this.inputVector.x < 0)
        {
            this.gun.GetComponent<SpriteRenderer>().flipY = true;
            //for(int i = 0; i < 2; i++) hands[i].GetComponent<SpriteRenderer>().flipY = true;
        }
        else
        {
            this.gun.GetComponent<SpriteRenderer>().flipY = false;
            //for (int i = 0; i < 2; i++) hands[i].GetComponent<SpriteRenderer>().flipY = false;
        }

        if (this.inputVector.x < 45f && this.inputVector.x > -45f && this.inputVector.y > 0)
        {
            this.gun.GetComponent<SpriteRenderer>().sortingOrder = -2;
            for (int i = 0; i < 2; i++) hands[i].GetComponent<SpriteRenderer>().sortingOrder = -1;
        }
        else { this.gun.GetComponent<SpriteRenderer>().sortingOrder = 0;
            for (int i = 0; i < 2; i++) hands[i].GetComponent<SpriteRenderer>().sortingOrder = 1;

        }

        if(this.inputVector.x < 40f && this.inputVector.x > -40f && this.inputVector.y < 0)
        {
            this.playeranimi.SetInteger("temp", 0);
        }
        if(this.inputVector.y < 30f && this.inputVector.y > -30f && this.inputVector.x < 0)
        {
            this.playeranimi.SetInteger("temp", 3);
        }
        if (this.inputVector.x < 40f && this.inputVector.x > -40f && this.inputVector.y > 0)
        {
            this.playeranimi.SetInteger("temp", 1);
        }
        if (this.inputVector.y < 40f && this.inputVector.y > -40f && this.inputVector.x > 0)
        {
            this.playeranimi.SetInteger("temp", 2);
        }
    }
}
